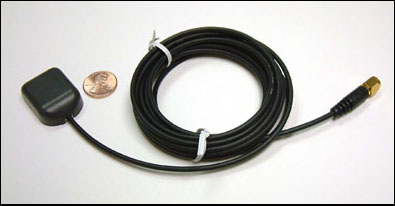

MicroMouse GPS Antenna

Inline image

If you’re looking for the smallest possible active antenna that doesn’t sacrifice gain or require a large ground plane, the MicroMouse MK-76 is for you.

Measuring just 1” x 1.3”, this postage stamp-sized antenna features a powerful 26 dB gain low-noise amplifier that draws only 12 milliamps of power.

It’s ideal for most handheld GPS Receivers, PDAs, and phones with an external active antenna jack. It has a built-in magnetic base, and can also be secured to a dashboard using hook and loop fastener (not included).

One year warranty against manufacturer’s defects. ONLY... $29.95



SPECIFICATIONS

Dimensions 34mm (L) x 25mm (W) x 11mm (H)
Frequency 1575.42 Mhz
Gain 26dB
Power Supply 2.5 ~ 8.0V DC
Current Consumption 12.0 mA
VSWR <2.0
Mounting Magnetic Mount



The MicroMouse MK-76 antenna is available with the following connectors:

MicroMouse Connector Type

Item #

Price Add to Cart
MicroMouse Active GPS Antenna

Right-Angle MCX Connector

Right Angle
MCX

35146

$29.95
MicroMouse Active GPS Antenna Straight MMCX Connector
Straight
MMCX
35145 $29.95
MicroMouse Active GPS Antenna Straight SMA Connector Straight
SMA
35147 $29.95
MicroMouse Active GPS Antenna Right-Angle SMB Connector Right Angle
SMB
35148 $29.95
MicroMouse Active GPS Antenna Straight BNC Connector Straight
BNC
35149 $29.95
